Sensor Wells

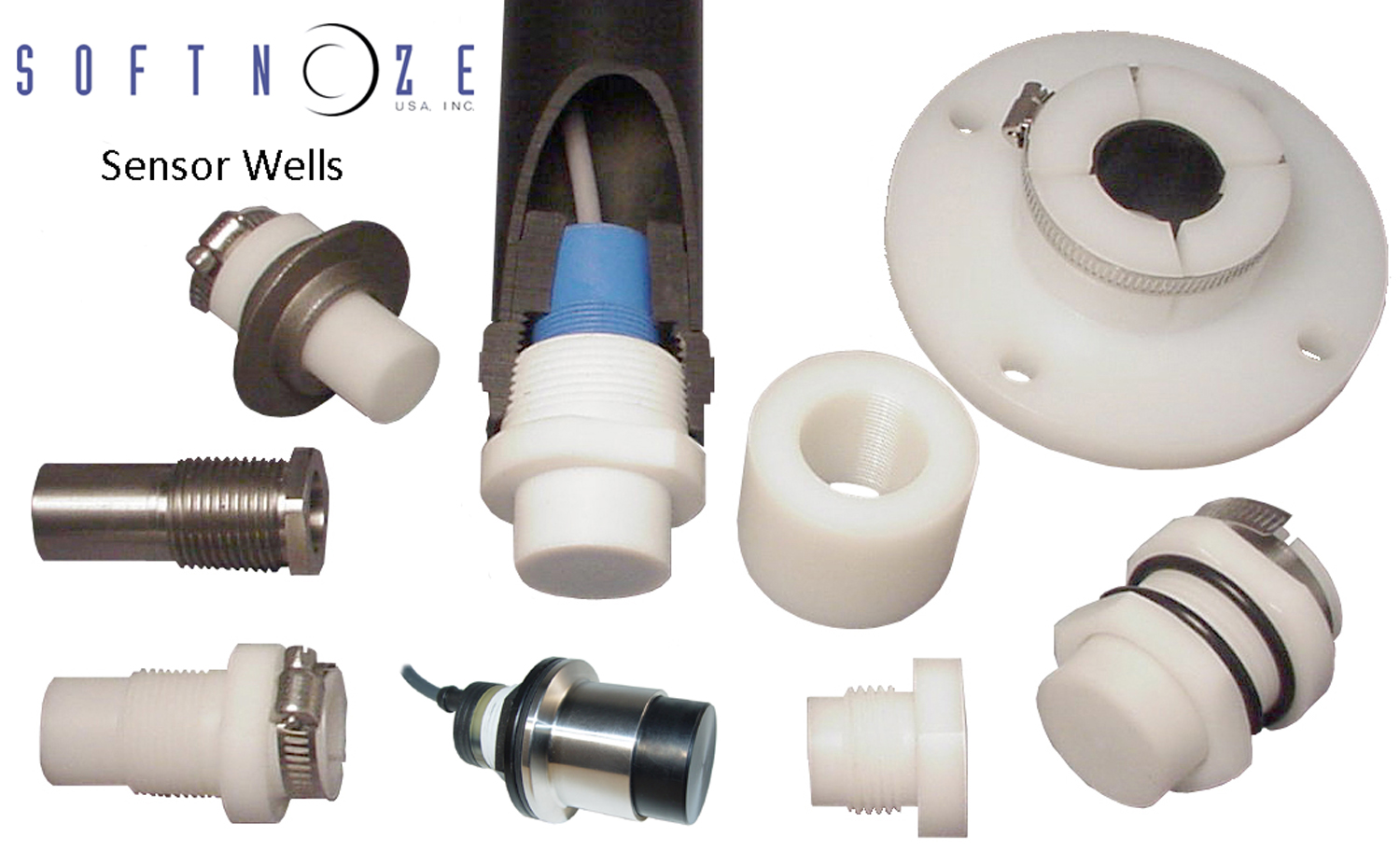

Integrate tubular-style proximity sensors to a wide variety of tank, pipe and vessel applications for level and material detection. Often used with industry standard capacitive, and less often with ultrasonic and photoelectric sensors. View a picture for some quick Sensor Well examples. Or consider another option, level sensing SightGlass mounts. Need installation ideas? View standard Sensor Well Options



Flange Mount, Smooth Bore
FMSB Flange Mount, Smooth Bore, models are primarily fabricated using UHMW polyethylene. O-ring produces a seal around the standard 4-bolt pattern.

View PDF


Pipe Taper, Threaded Bore
PTTB model in FDA approved Delrin or Virgin Teflon (PTFE). Inner threaded to accept M12, M18 or M30 sensors; outside housing threaded to mate with standard NPT pipe taper.

View PDF


Pipe Taper, Smooth Bore
PTSB Models in FDA approved Delrin or Virgin Teflon (PTFE). Inner bore accepts 12, 18 or 30mm sensors and sensor secured via stainless steel band clamp. Outside housing mates with standard NPT pipe taper.

View PDF


SAE Threaded, Smooth Bore
SAE Models for 12 and 18mm sensors. Sensor is held secured with a stainless steel band clamp. Outer housing is threaded and has an O-Ring that mates and seal with SAE-style threads.

View PDF


Conduit Type, Threaded Bore
CTTB Ordered in Delrin or Teflon material types, depending on application. Secures sensors a length of conduit, which is then dropped into tanks and easily adjusted for level detection.

View PDF


Bulkhead-style, Smooth Bore
BHSB Models supplied with a lock nut and dual O-rings for through-hole mounting in tanks. 30mm Delrin models are stock, all other diameters and or materials produced on demand.

View PDF


Weld-On, Threaded Bore
WOTB Models are welded (using a plastic welding rod) to etching and cleaning tanks. Stocked to hold M30x1.5 sensors. Specify material type; "PE" for polyethylene or "PP" for polypropylene.

View PDF
